Scientific objectives
The main aim is to observe auroral activity and to monitor sky conditions with standalone weatherproof housings.

Owner: Polar Research Institute of China (PRIC)
Contacts
PI: Dr. Zejun Hu
Address: Polar Research Institute of China, No. 451, Jinqiao Road, Shanghai, 200136, China
E-mail: huzejun@pric.org.cn

Instruments specifications
Manufacture: Yunnan Observatories, Chinese Academy of Sciences

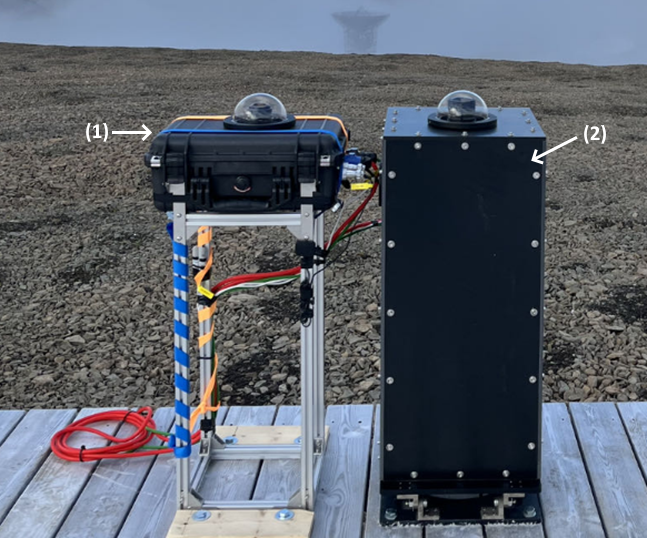

(1) All-sky color camera
Lens objective: Fish-eye lens (Laowa 4mm/F2.8)
Detector: ASI294MC-Pro
Resolution: 4144 x 2822 pixels
Weight: ~15kg
Dimensions (L x W x H): ~371mm x 258mm x 252mm

(2) Narrow-band all-sky imager
Lens objective: Fish-eye lens (Nikon 16mm/F2.8)
Filter: 630.0nm or 557.7nm
Detector: Andor iXon Ultra888 EMCCD
Resolution: 1024 x 1024 pixels
Weight: ~46kg
Dimensions (L x W x H): ~ 425mm x 365mm x 910mm
